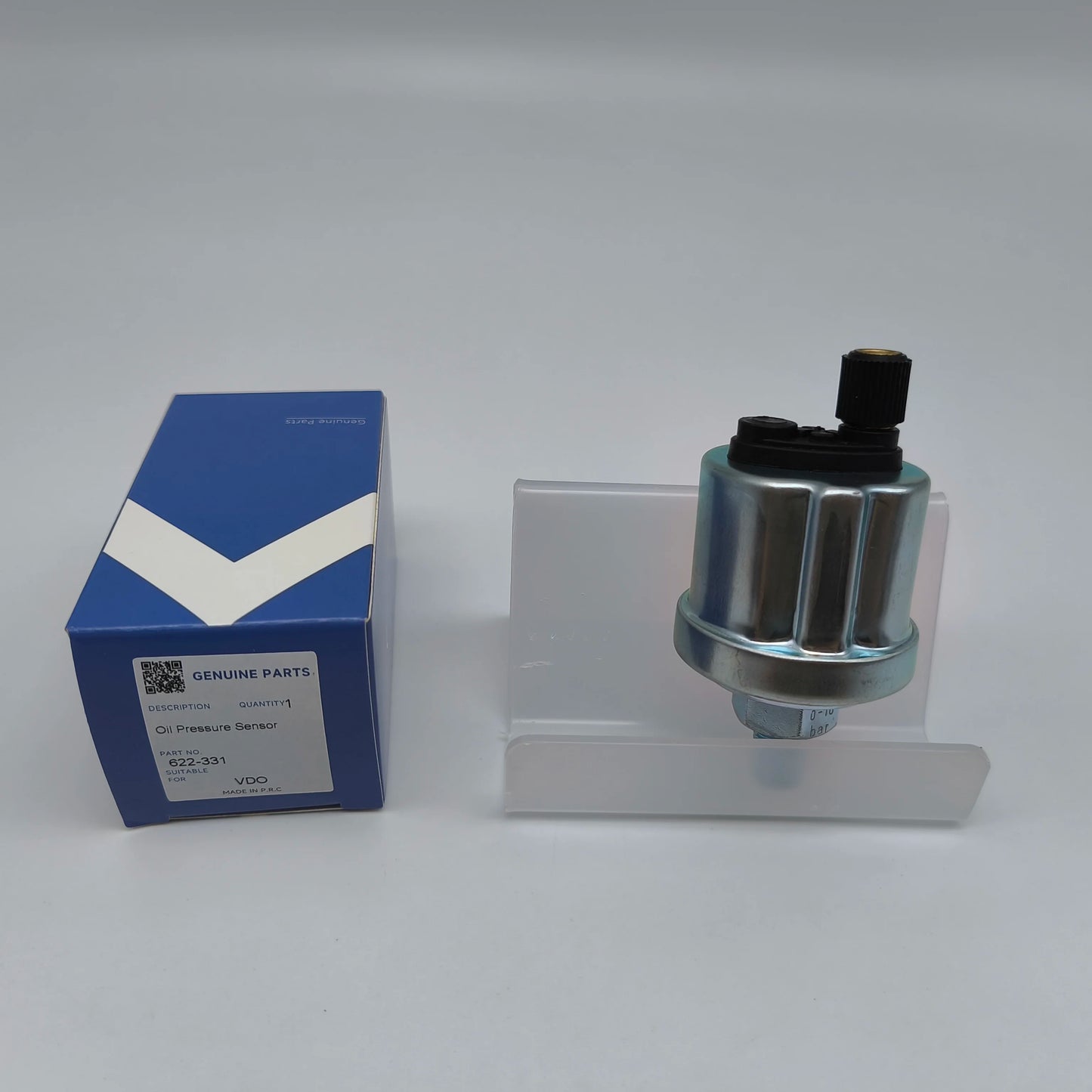

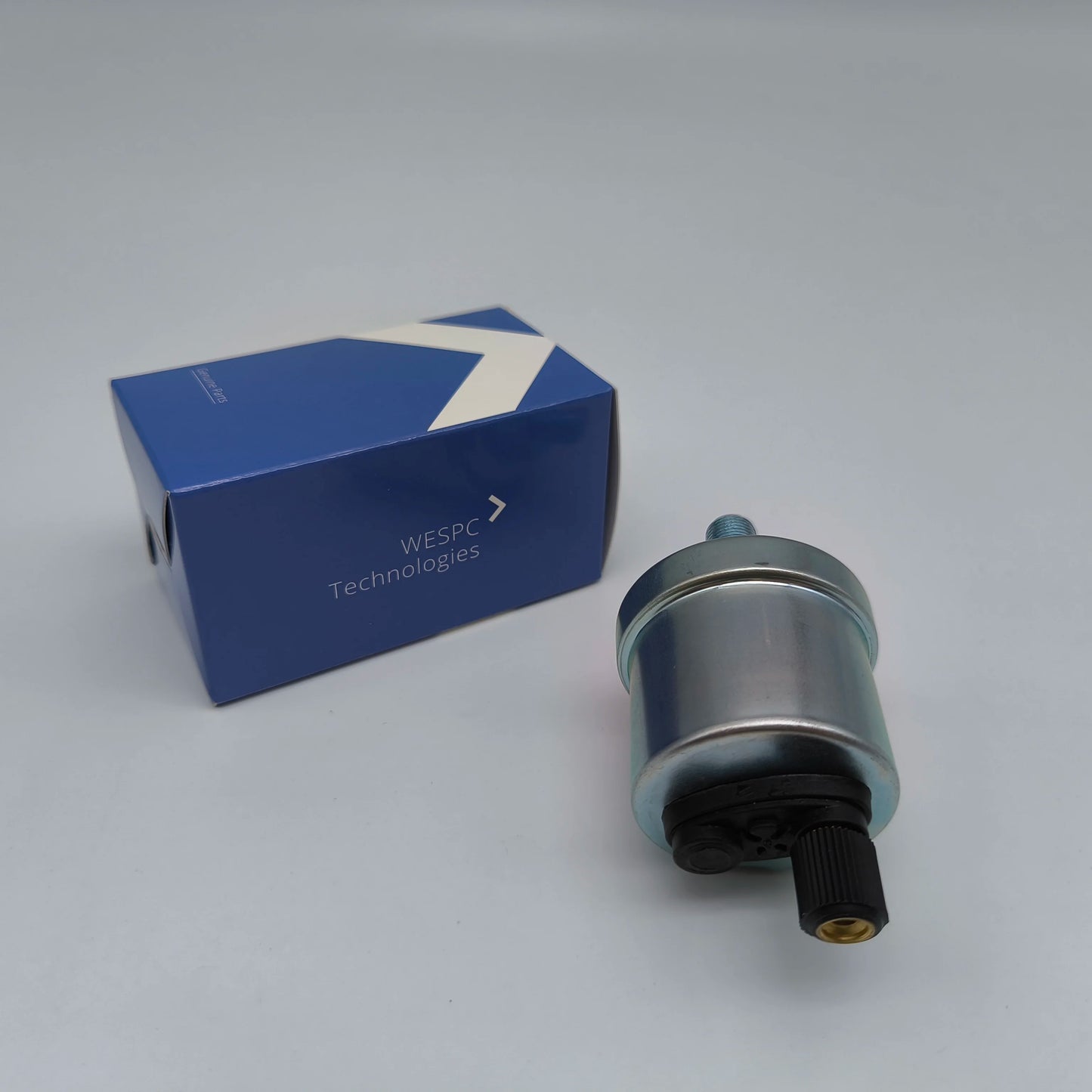

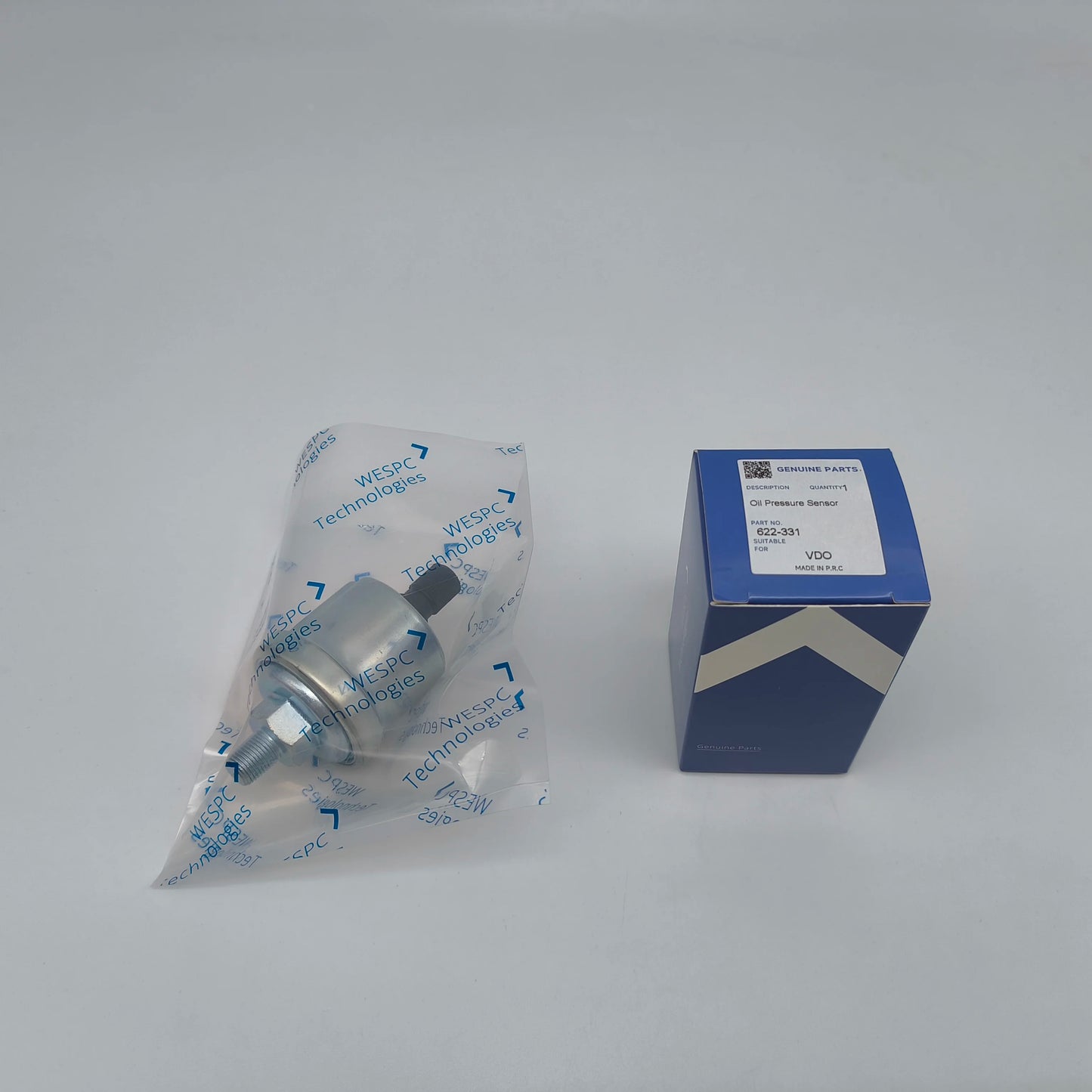

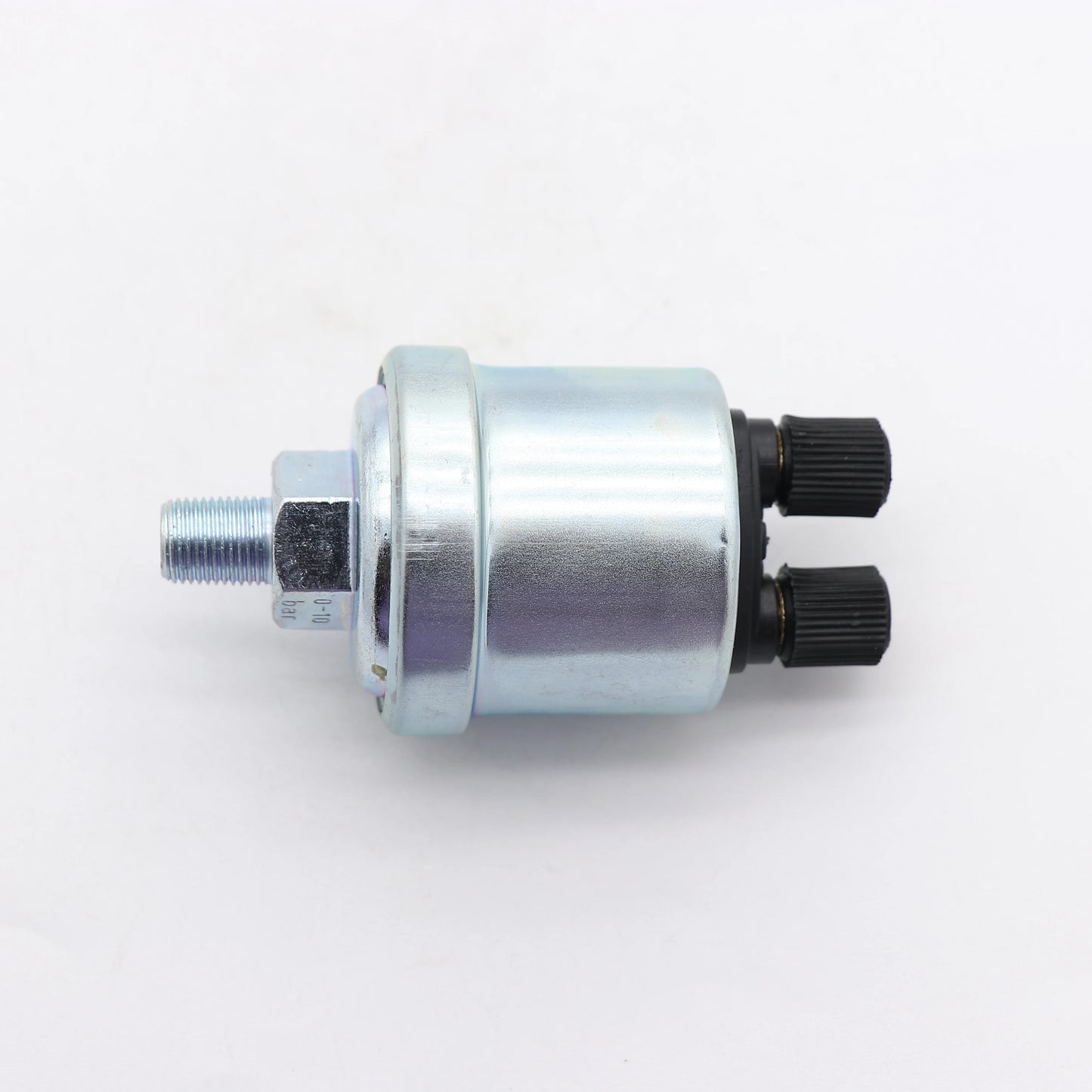

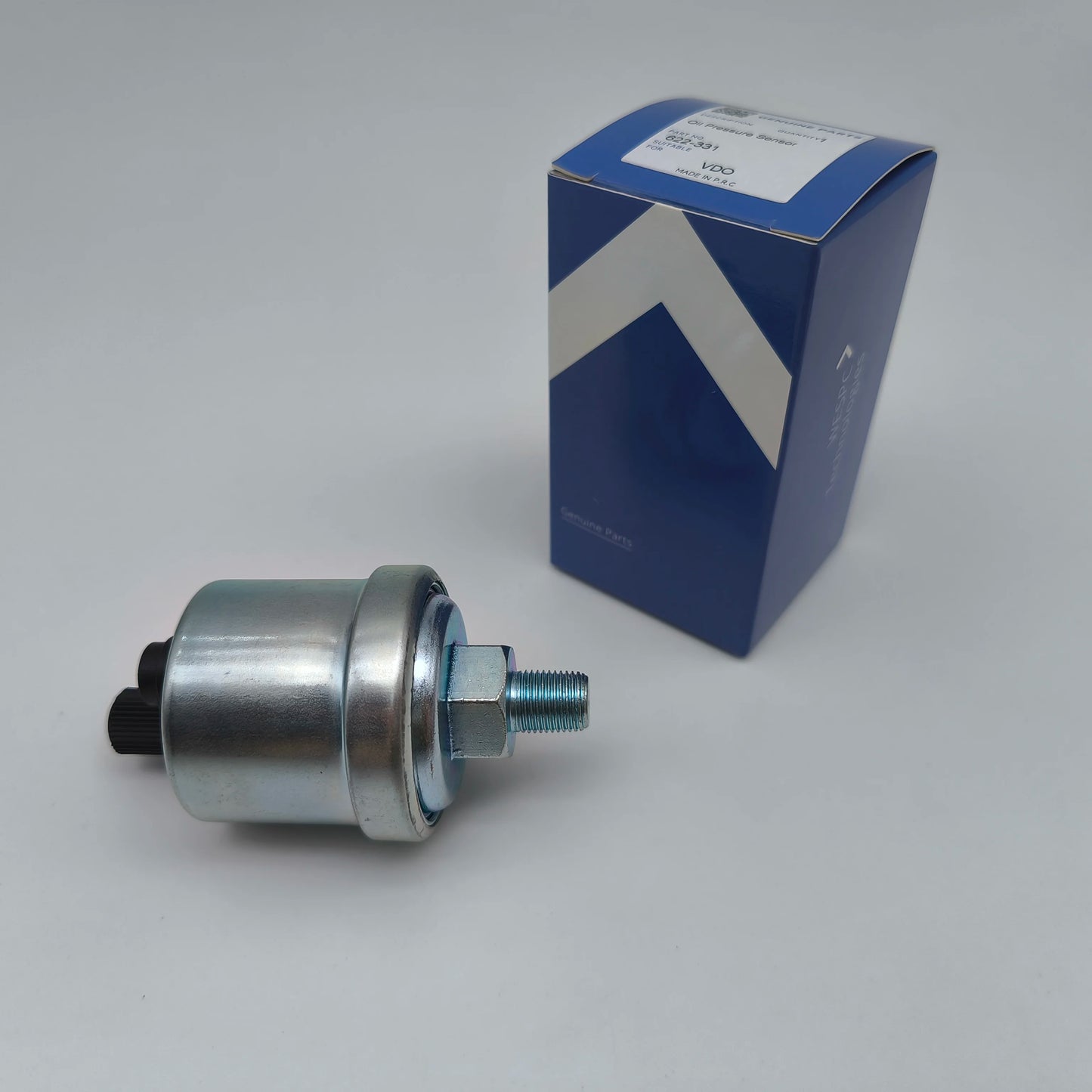

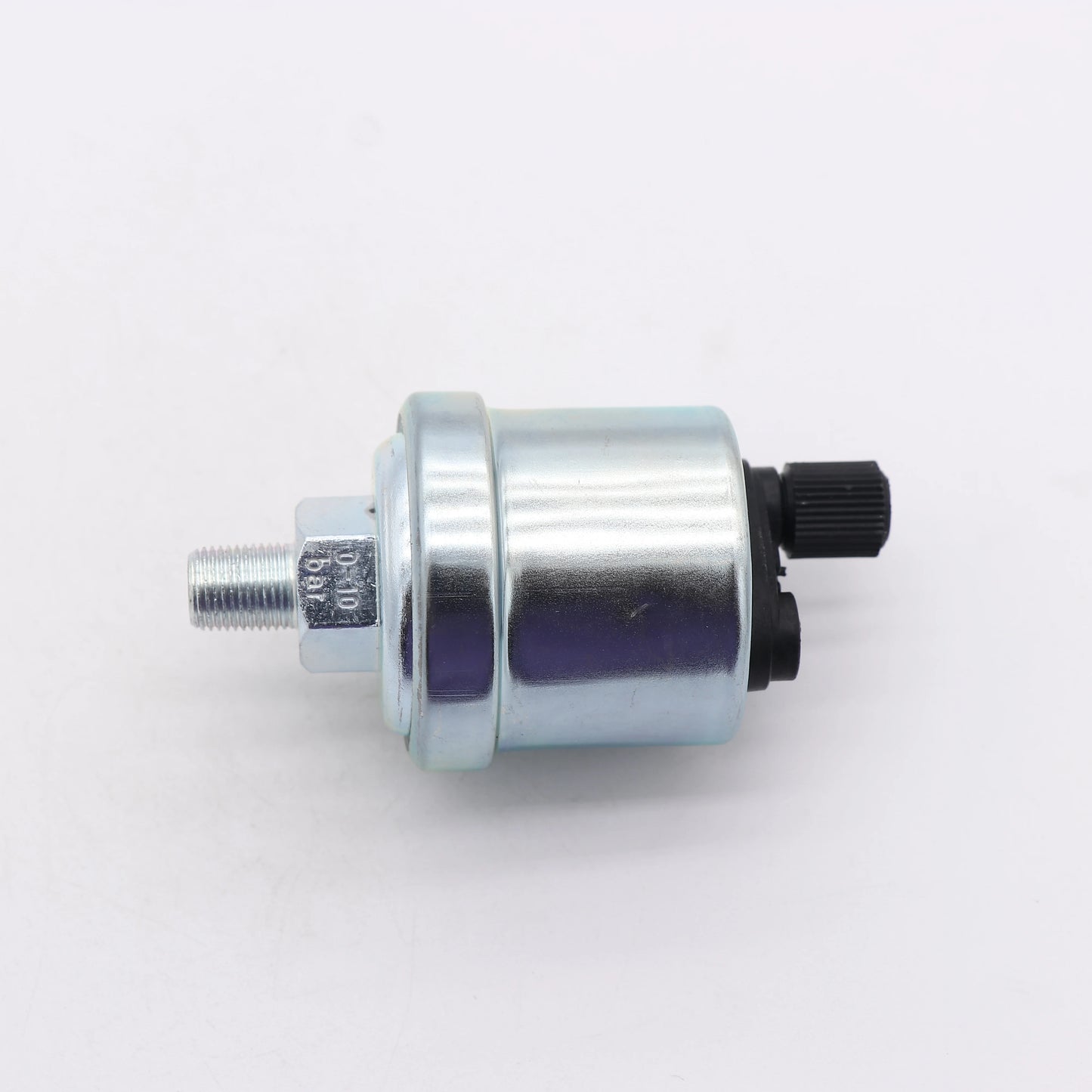

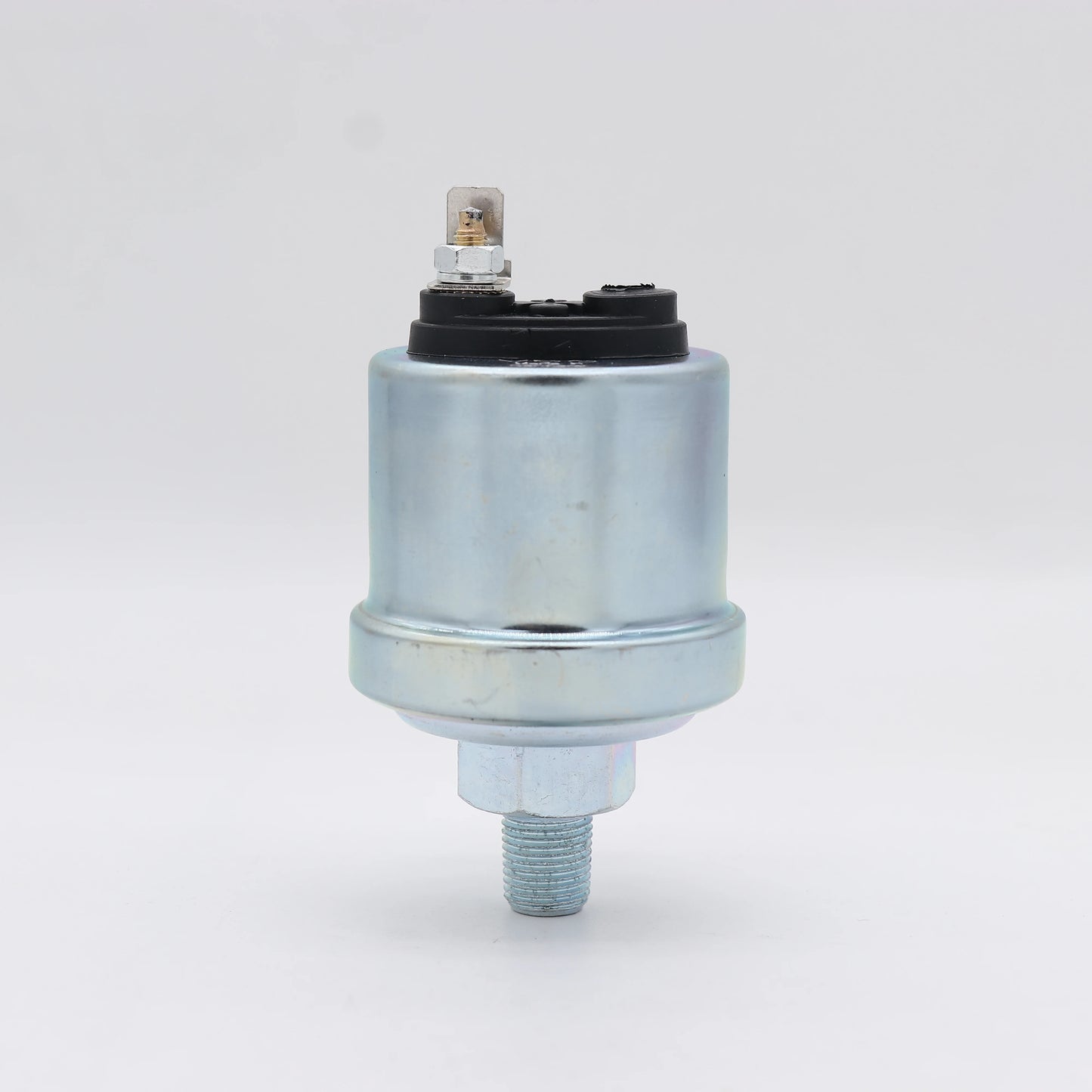

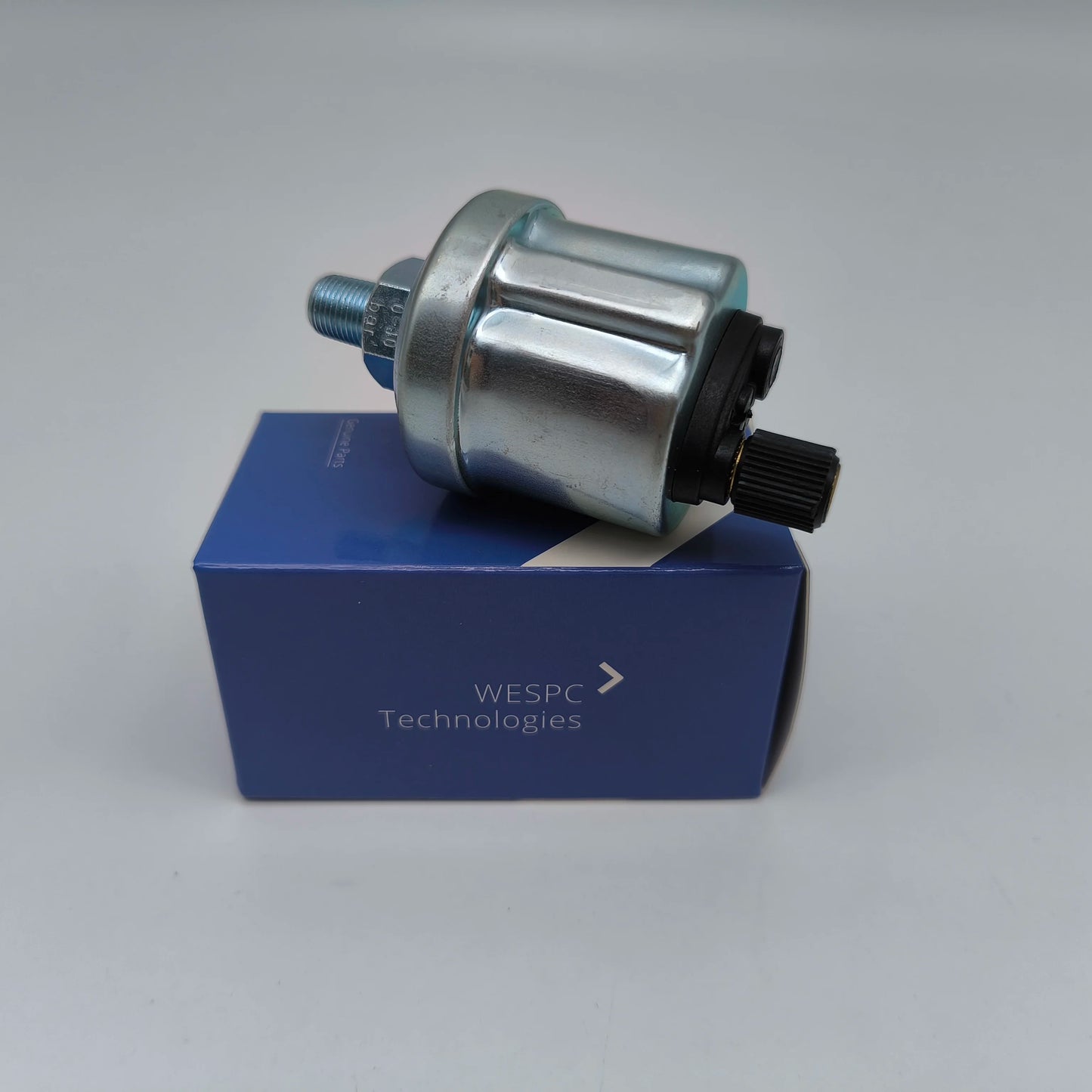

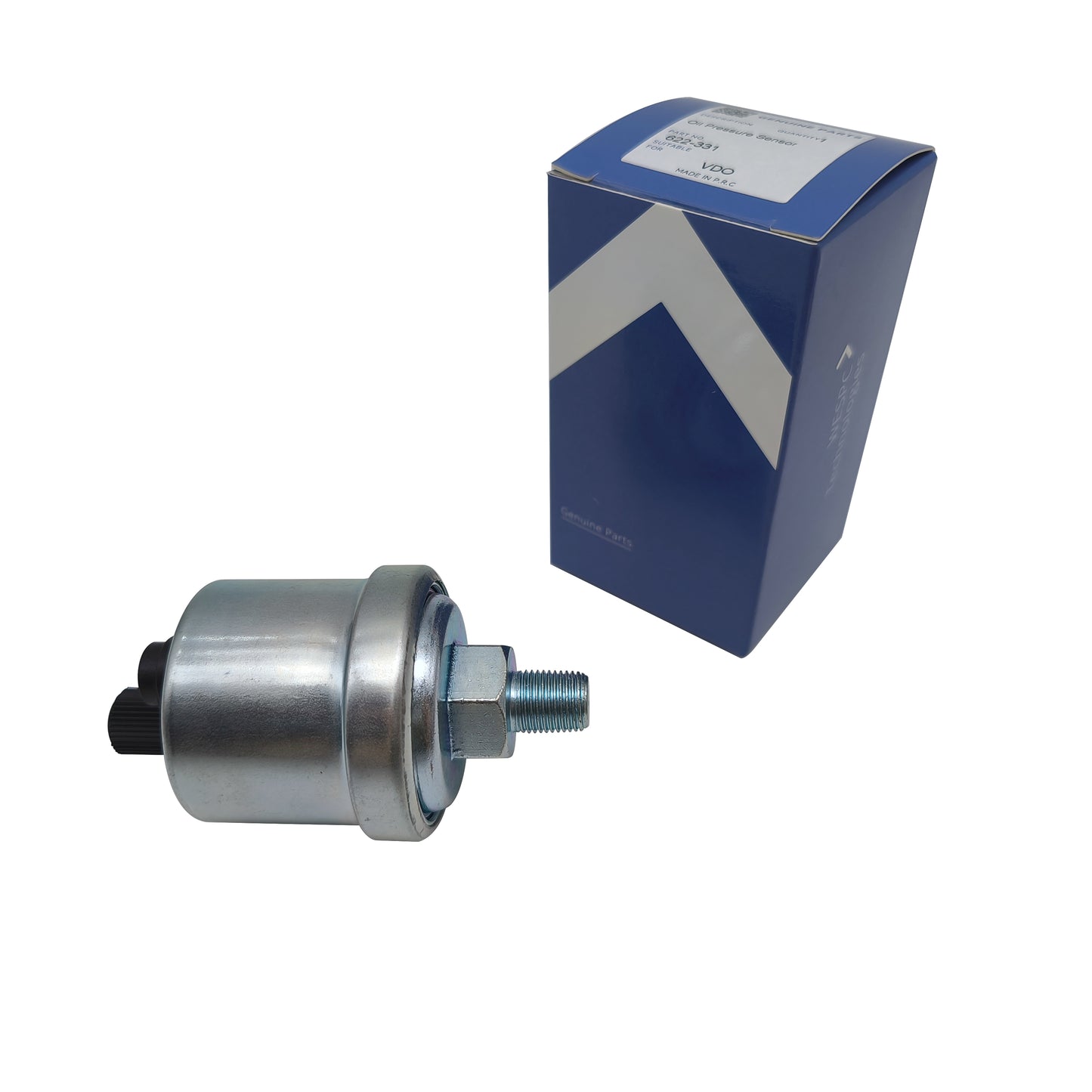

622-333 622-331 Oil Pressure Sensor 0-10bar Replace for FG-Wilson Olympian Genset VDO Oil Pressure Switch Sender
Part Number: 622-333 622333 622-331 622-137
Application:Oil Pressure Sender Switch 622-333 for FG Wilson Olympian Generators
Fit for all FG Wilson and Olympian genset models with 0-10 bar oil pressure gauges (12 and 24V).0-5 bar oil pressure sender/switch also available
Specification:

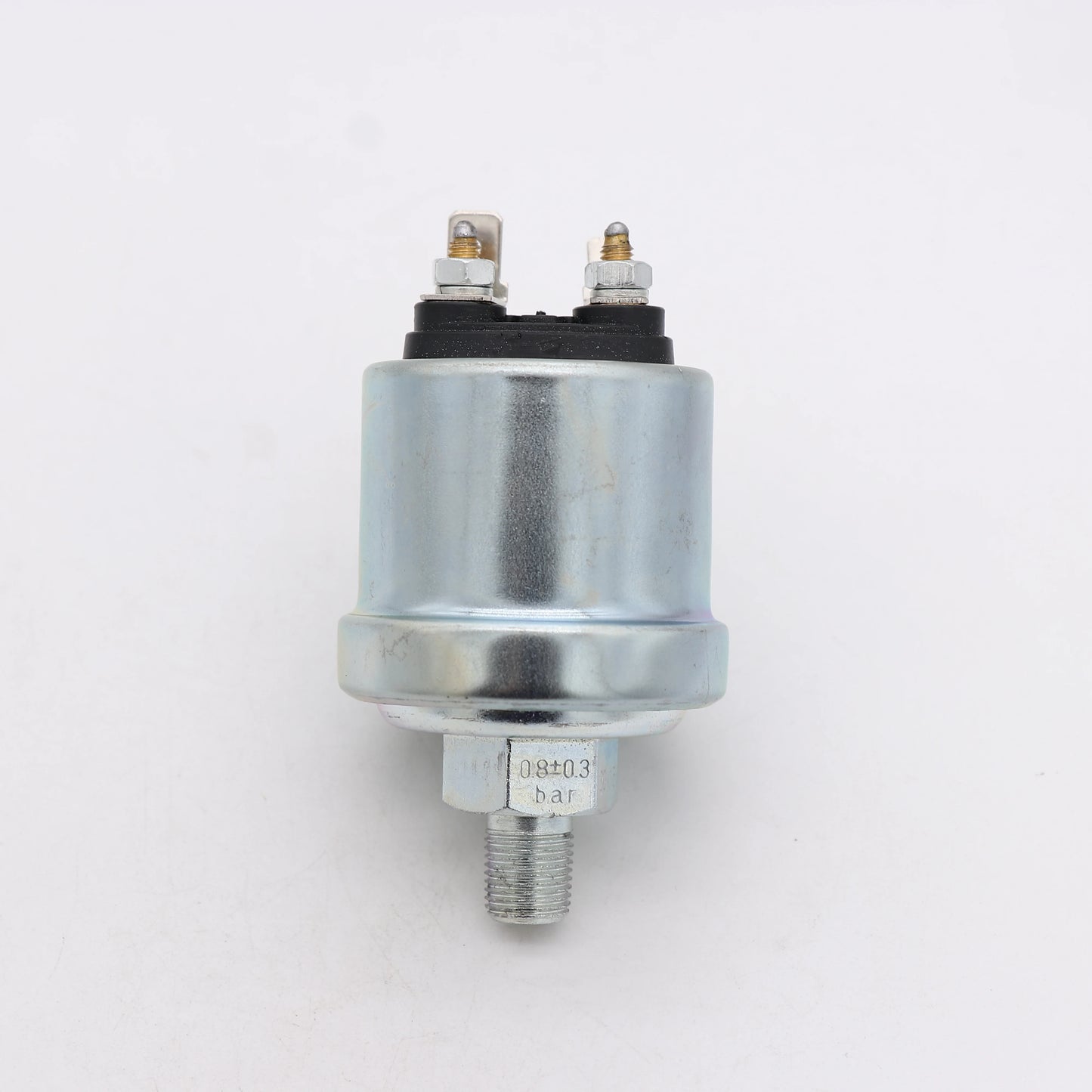

Terminal G: Is the sender and wire “OP” should be connected to this tterminal - with the wire disconnected
the terminal should read close to 10 ohms to ground with genset off
Terminal WK: Is the switch and *wire “15” should be connected to this terminal - with the wire disconnected
the terminal should read less than 1 ohm to ground with genset off
* Wire “15” will not be connected on 2300 & 2800 electronic engines, since the engine’s Electronic Control
Module will control the low oil pressure shutdown
Shipping Weight: 1.4 pounds
Package Including:
Oil Pressure Sender Switch X 1
