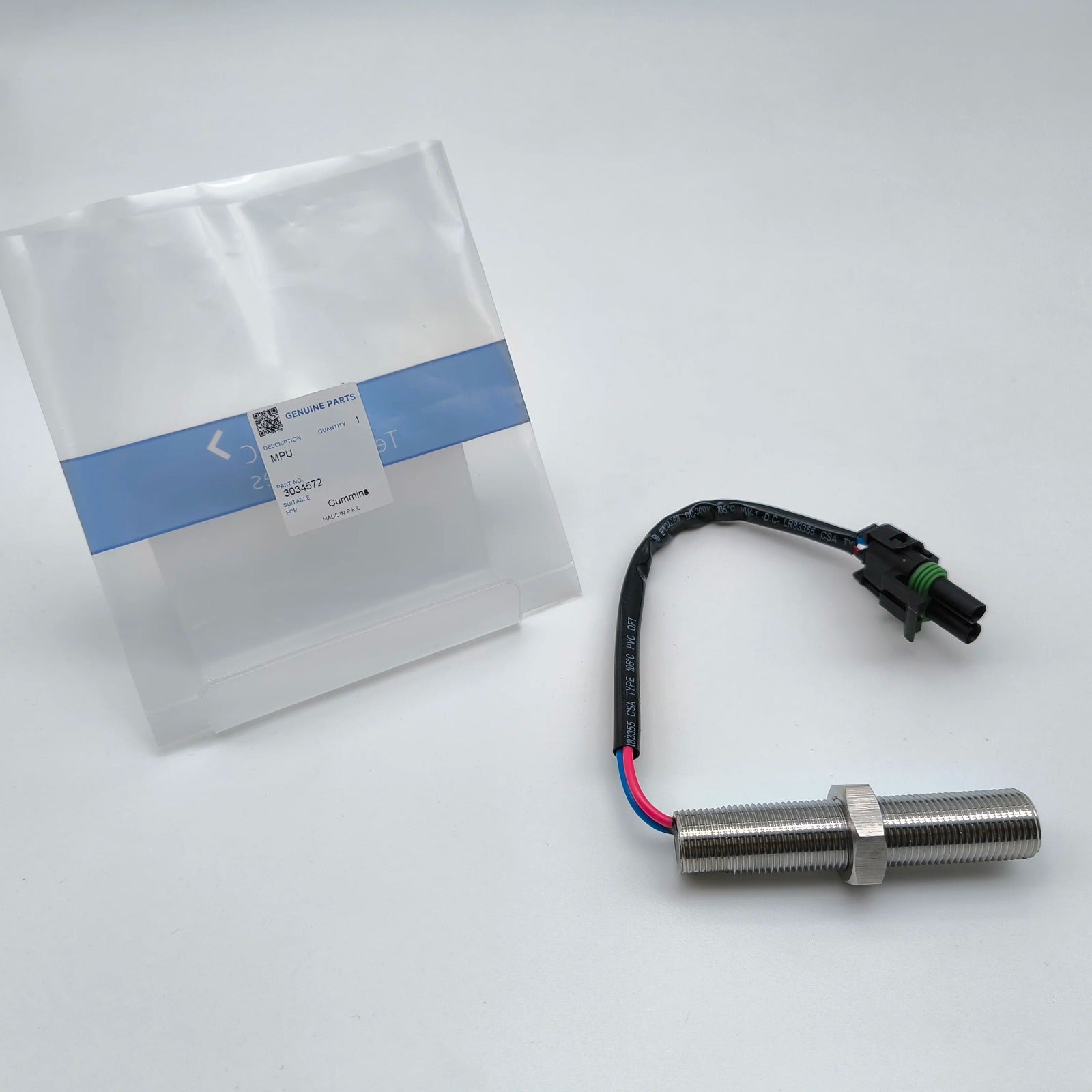

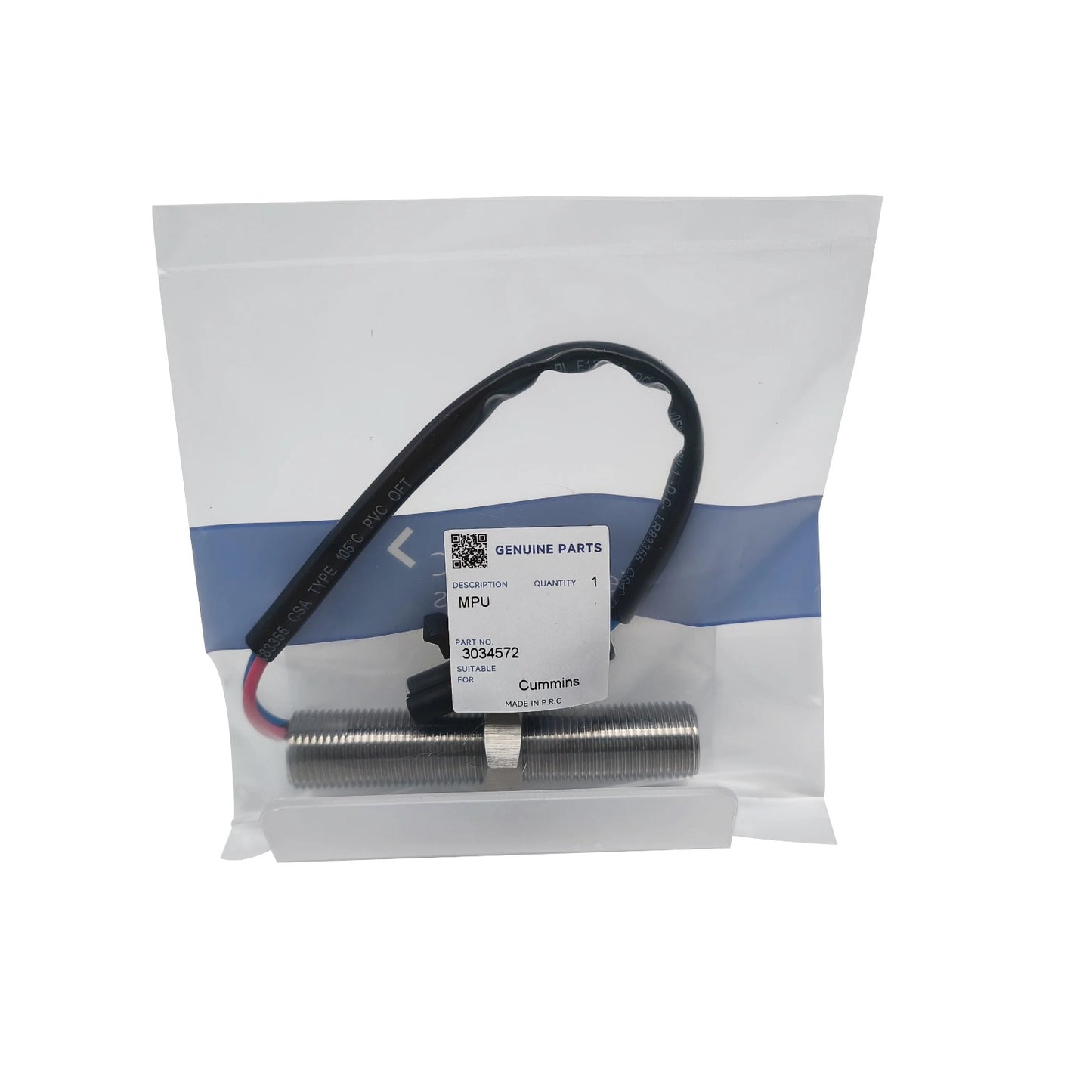

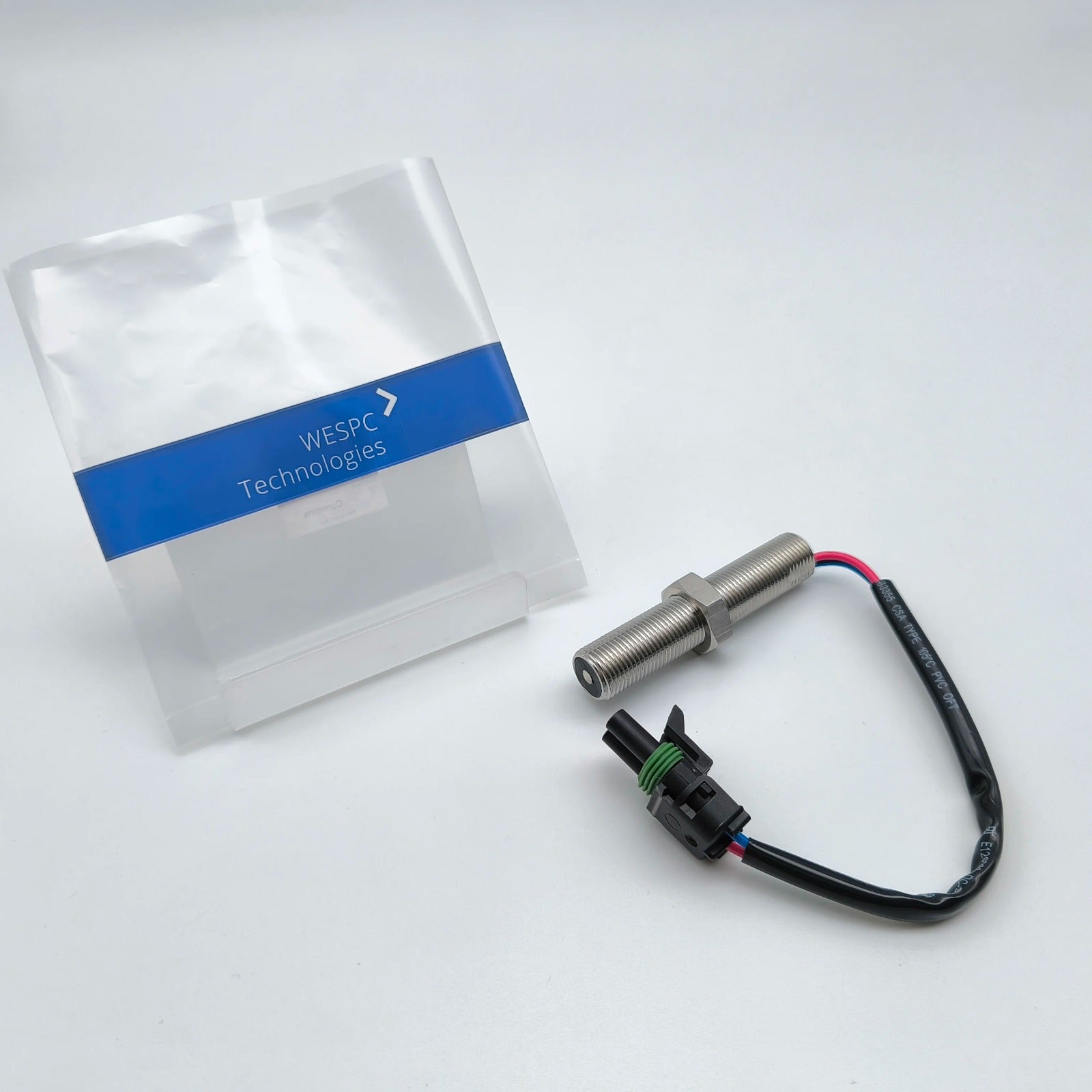

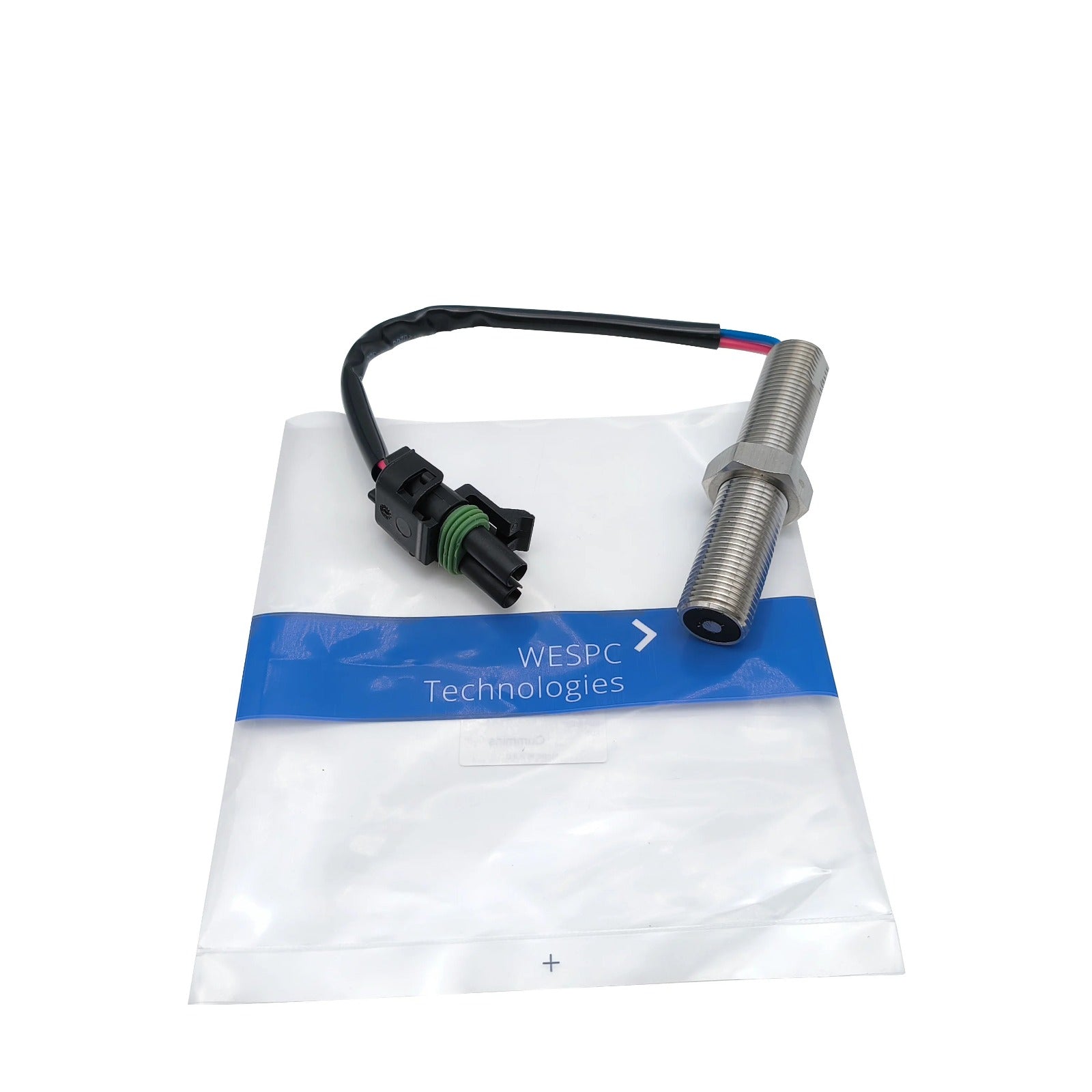

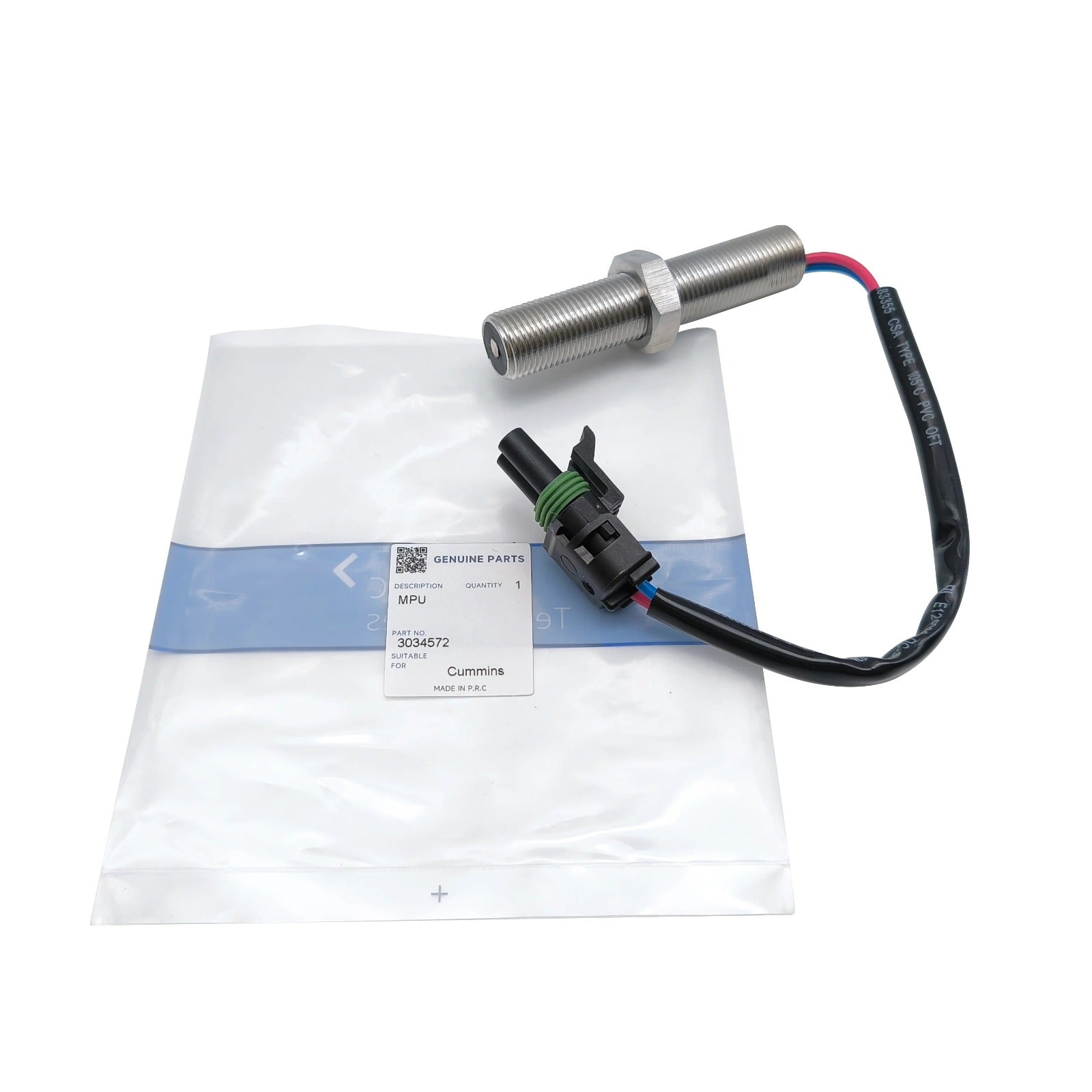

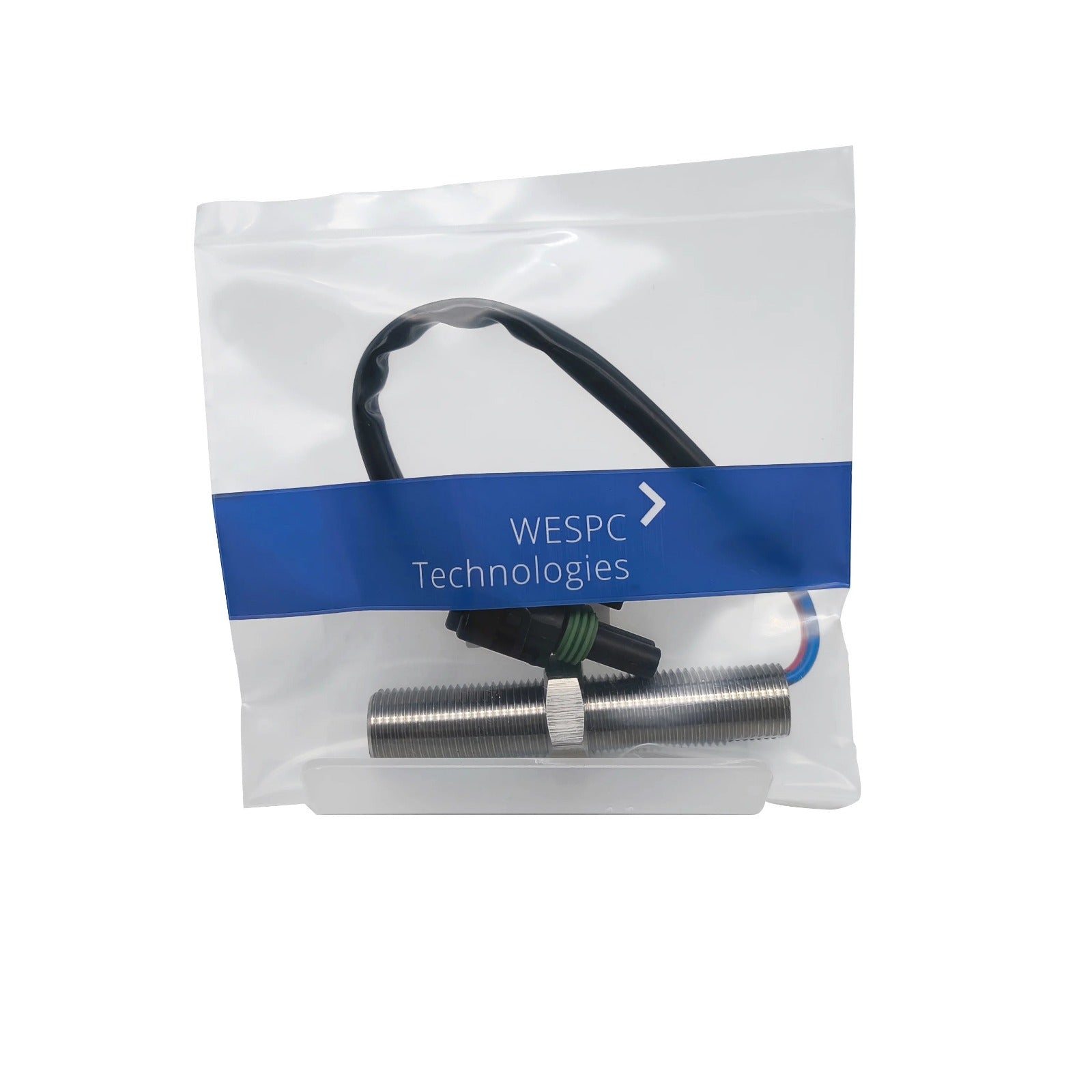

3034572 Magnetic Pickup MPU Generator Speed Sensor RPM WESPC . Suitable for Cummins K38 G38 QSK38 KTA38GC K106

3034572 Magnetic Pickup MPU Generator Speed Sensor RPM Replacement for Cummins K38 G38 QSK38 KTA38GC K106

Reference Details:

Replacement for cummins engine K38, QSK38, CM2150, MCRS, QSK38, CM850, MCRS, G38, KTA38GC, CM558, QSK38 CM2150, K106

Description:

Measure range: 50-5000Hz

Inductance: 142MH+25%

Thread size: 5/8-18 unf-2A

Tap drill size: 37/64 inch

Proximity to gear teeth: .028 in min. - .042 in max.(approximately 1/2 to 3/4 turn)

Temperature range: -55 deg C to 105 deg C

utput at cranking speed: 1.5 volts ac minimum

Maximum output: 30 volts ac

Coil resistance: 300 ohms maximum
